American Type vs. German Type Hose Clamps: Key Differences & How to Choose
In the world of hose fittings, the American-type hose clamp and the German-type hose clamp are the two most frequently requested products by overseas buyers. Many new purchasers or maintenance technicians often confuse the two, resulting in clamps that either fail to tighten properly or end up cutting into the hose.
As a manufacturer of Tianjin Toreym stainless steel hose clamps, we receive inquiries about these two types every day. Today, we’ll break down the differences in structure, load distribution, materials, and applications in the simplest terms, helping you make the right choice every time.

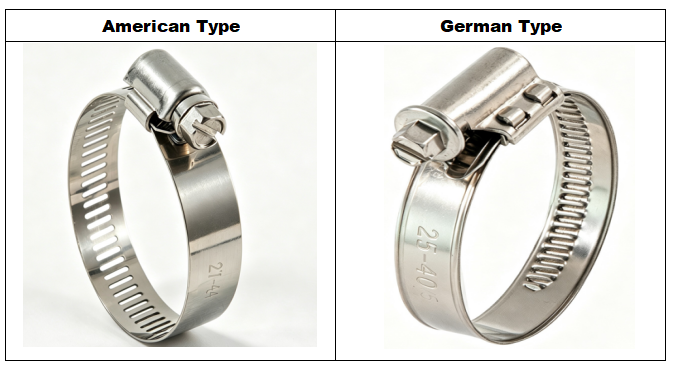

1. Core Structural Differences: Perforated vs. Embossed (Non-Perforated)
This is the most fundamental difference and the key factor determining their ideal applications.
| Feature | American Type Hose Clamp | German Type Hose Clamp |
|---|---|---|
| Band Structure | Features round perforations; the worm gear directly engages the holes. | Features internal embossed teeth; the band edge is non-perforated. |
| Load Distribution | Point-load (gear locks into specific holes). | Even surface pressure (gear drives the teeth for uniform tightening). |
| Band Edge | Perforated edges can be relatively sharp. | Smooth, rounded edges with no breakpoints. |
| Visual ID | A row of visible round holes on the outside. | Smooth outer band; no holes visible. |
In simple terms:
An American clamp is like “a gear climbing a ladder”—it moves in distinct steps. A German clamp is like “a gear driving a rack”—it allows for micro-adjustments and a much smoother tightening process.
2. Performance & Application Comparison
A. American Type: The Versatile Workhorse for Medium-Low Pressure
- Pros: Mature design, relatively lower cost, and a massive range of sizes (from small to large, covering 8mm to 120mm+ OD).
- Cons: Due to point-loading, over-tightening can deform the perforations or even cut into softer silicone hoses. There is also a risk of gear stripping under excessive torque.
- Typical Applications:
- Automotive cooling and heater hoses
- Industrial water pumps and air compressor lines
- Home appliance inlets/outlets (washing machines, dishwashers)
- Agricultural irrigation and gardening
- General industrial plumbing and ventilation
Toreym Recommendation: If you need a high-volume, general-purpose, medium-low pressure solution, the American type offers the best value. We recommend pairing it with 304 stainless steel for corrosion resistance in most indoor and outdoor environments.
B. German Type: The Guardian for High-Pressure & Thin-Walled Hoses
- Pros: Stepless/infinite adjustment, uniform torque distribution, smooth edges that won’t damage hoses, and superior resistance to twisting and high pressure.
- Cons: More complex structure means a higher unit cost than American clamps. For very large diameters (e.g., DN80+), the cost increases noticeably due to the required worm gear strength.
- Typical Applications:
- Automotive turbocharger and intake pipes (mostly silicone)
- Marine seawater lines and chemical fluid transfer
- Food & pharmaceutical grade hoses (requires smooth, dead-space-free edges)
- High-pressure connections for thick-walled silicone or rubber hoses
- Hydraulic auxiliary lines requiring zero-leak sealing
Toreym Recommendation: If the medium pressure is high, the hose material is soft (like thick-walled silicone), or the client specifically requests “no hose damage,” the German type is the superior choice. Toreym German clamps are precision-stamped to ensure the worm gear and embossed teeth mesh perfectly for uniform force distribution.
3. Material Selection: 304 or 316?
Regardless of the type, the logic for material selection remains the same:
- 304 Stainless Steel: The universal standard. Resists atmospheric, water, and oil mist corrosion. Ideal for 90% of standard working conditions.
- 316/316L Stainless Steel: For specialized environments. Essential for coastal, marine, chemical, or high-salinity applications. Offers far superior pitting resistance compared to 304.
- 201 Stainless Steel / Zinc-Plated: Only for dry, indoor, non-critical, or one-time low-cost use. Toreym does not recommend these for any water-related or outdoor scenarios.
4. Purchasing Decision: Which One Should You Choose?
The Toreym technical team has summarized a simple selection guide for overseas buyers:
| Your Requirement | Recommended Type | Reason |
|---|---|---|
| High volume, low cost, general medium-low pressure | American Type | Significant price advantage, wide size range, fast lead times. |
| Silicone/thin-walled hoses, risk of cutting | German Type | Smooth edges, even surface pressure protects the hose. |
| High pressure, heavy vibration, zero-leak requirement | German Type | Uniform force distribution, superior anti-loosening properties. |
| Turbochargers, high-temp engine bay | German Type | High temperature and pressure resistance, higher reliability. |
| Home appliance repair, agricultural irrigation | American Type | Economical, practical, and easy to install. |
5. Toreym Supply Capabilities
As a professional hose clamp manufacturer, Tianjin Toreym supplies the full range of both American and German types:
- American Type: Small, medium, and heavy-duty; band widths 8/10/12.7mm; 304/316L material; supports laser marking and salt spray reports.
- German Type: Standard and heavy-duty German clamps; sizes from DN8 to DN120; 304/316L options available; worm gears can be matched with carbon steel, 201, or 304.
- Customization: Non-standard diameters, special band widths, color boxes, and English manuals are all available.
- Samples: New clients can apply for 5–10 free samples for testing before placing a bulk order.
