Spring Hose Clamps: The Self-Adjusting Sealing Expert for Small-Bore Hoses | Toreym Industry Insights

In small-bore hose connection scenarios, over-tightening often leads to hose deformation and damage, while insufficient tightening causes leaks. Spring hose clamps (also known as Constant-Tension Clamps) solve this pain point perfectly with their core advantage of “self-adjusting fastening.” They have become the go-to solution for small-bore hoses in the automotive, home appliance, and small equipment industries.

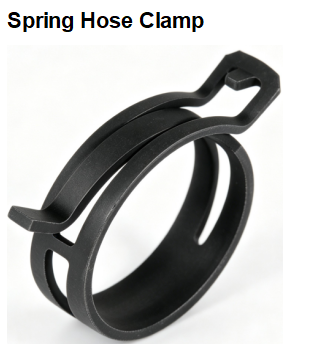

1. What is a Spring Hose Clamp?

Unlike traditional American or German worm-drive hose clamps, spring hose clamps are made of one-piece high-quality spring steel (such as 65Mn). They feature no bolts, nuts, or screw slots, but instead adopt a spiral or open C-shaped ring design.

Core Working Principle:​ They utilize the elastic deformation of the metal itself to generate continuous clamping force. During installation, specialized pliers are used to pinch the ears and expand the clamp. Once released over the hose, it automatically grips tightly by spring tension. It automatically adjusts the clamping force according to the thermal expansion and contraction of the hose, maintaining constant-pressure sealing at all times.

2. Core Advantages: Why Choose Spring Hose Clamps?

1. Self-Adjusting Constant Tension:​ Automatically compensates for pipe expansion or contraction caused by temperature changes. Provides self-compensating, constant-tension fastening in thermal cycling applications to prevent loosening and leakage.
2. Hose Protection (No Damage):​ The clamping force is evenly distributed, preventing damage caused by excessive local stress (over-tightening) common with screw-type clamps. Smooth edges avoid scratching flexible hoses.
3. Vibration & Temperature Resistance:​ Excellent elasticity and anti-vibration properties, adapting to high-temperature and high-frequency vibration environments such as engine compartments (some products withstand up to 300°C).
4. Compact Size & Tool-Free Quick Installation:​ Simple structure, ideal for narrow or confined spaces. No screwdriver needed—just pinch with pliers to expand and place. This greatly improves installation and maintenance efficiency.

3. Typical Applications

Spring hose clamps are standard OEM components (e.g., automotive cooling systems), mainly used in:

• 🚗 Automotive & Motorcycle:​ Coolant hoses (radiator/heater hoses), low-pressure fuel lines, vacuum lines, turbocharger pipes, and motorcycle oil pipes. They adapt to temperature fluctuations to prevent fluid leaks.
• 🏠 Home Appliances:​ Washing machine inlet/drain hoses, dishwasher drain hoses, thin air conditioner pipes, and refrigerator water supply lines. They adapt to slight hose deformations, eliminating water leakage.
• 🏭 Small Industrial Equipment:​ Hydraulic hoses, silicone hoses, and pneumatic pipe connections for compact machinery. Also widely used in agricultural irrigation systems.

4. Material & Selection Guide

• 65Mn Spring Steel (Zinc Plated / Dacromet / Black Oxide):​ Excellent elasticity, the standard material for spring clamps. Zinc plating suits dry indoor use; Dacromet coating offers superior salt spray resistance (480+ hours) for harsh environments.
• 304/316 Stainless Steel:​ For outdoor, humid, chemical, or highly corrosive conditions, though at a relatively higher cost.

⚠️ Installation & Maintenance Tips:

1. Match Hose OD:​ Measure the outer diameter of the hose and select a clamp with a clamping range slightly above the middle. Do not clamp at the extreme small end.
2. Specialized Tools:​ Always use dedicated spring clip pliers for installation and removal to avoid clamp deformation or injury from manual operation.
3. Scrap Standard:​ Never reuse a spring clamp that shows permanent deformation (fails to return to its original diameter after release), as it has lost tension and cannot maintain a reliable seal.

5. Toreym Supply Capabilities

As a professional fastener manufacturer, Tianjin Toreym supplies the full range of spring hose clamps:

• Material & Finish:​ 65Mn spring steel, available in zinc plated, Dacromet, black oxide, and 304/316L stainless steel options.
• Complete Specifications:​ Band widths 6/8/10/12/15mm, suitable for hose diameters from 6mm to 120mm+.
• Customization:​ Supports non-standard diameters, heavy-duty customization, color box packaging, and laser marking.
• Sample Support:​ Overseas B2B clients can apply for 5–10 free samples for testing before placing bulk orders.
